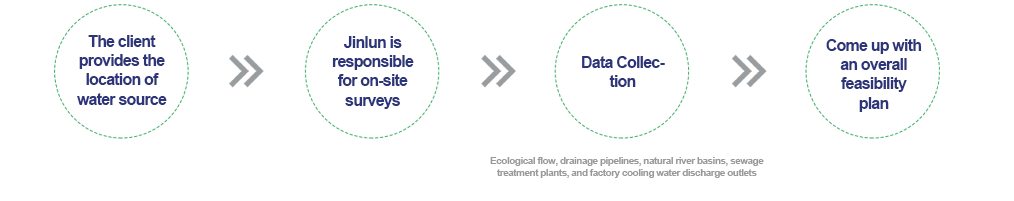

  • Microgrid Composition and Implementation Process
    • Product Design and Selection:

    1. Containerized Units (mixed-flow, inclined-jet, impulse turbines).

    2. In-Line Units (Axial-extension tubular turbines, integrated in-pipe turbines, mixed-flow external turbines).

    3. Low-Head Units (integrated submersible tubular turbines), configured with an appropriate hybrid power plant (wind, solar, and/or gas + energy storage), and using a proprietary AC-DC-AC power conversion system for grid-connection and off-grid self-consumption operations.

    Jinlun embraces flexible and diversified cooperation models:

    1. The client provides full funding for the project and buys equipment from Jinlun.

    2. Jinlun provides full funding for the project and sells electricity directly to the factory or feeds it into the grid.

    3. The client and Jinlun cooperate in the form of a joint venture, where Jinlun contributes equipment as equity.

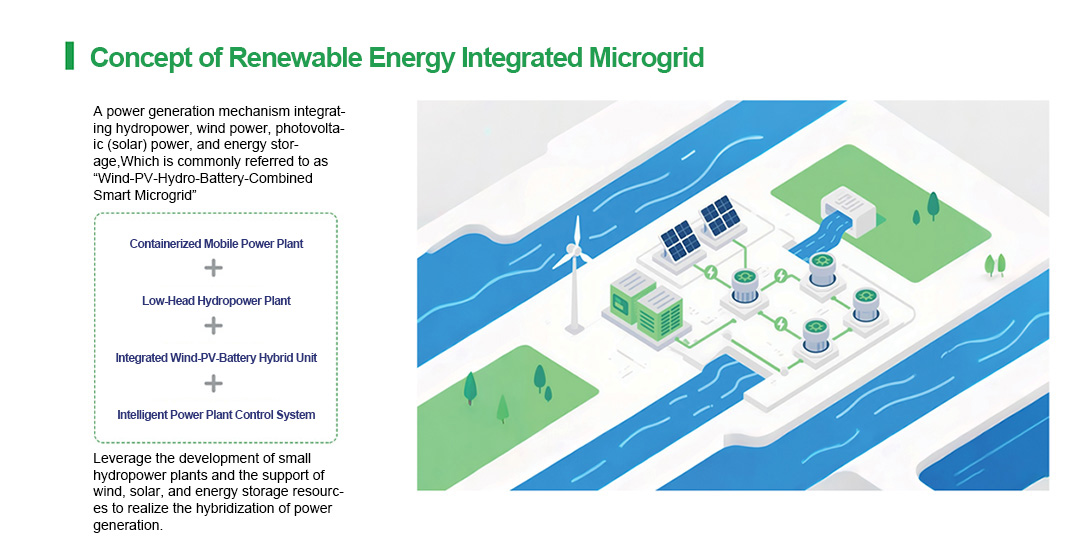

  Renewable Energy Integrated Microgrid Forming Example

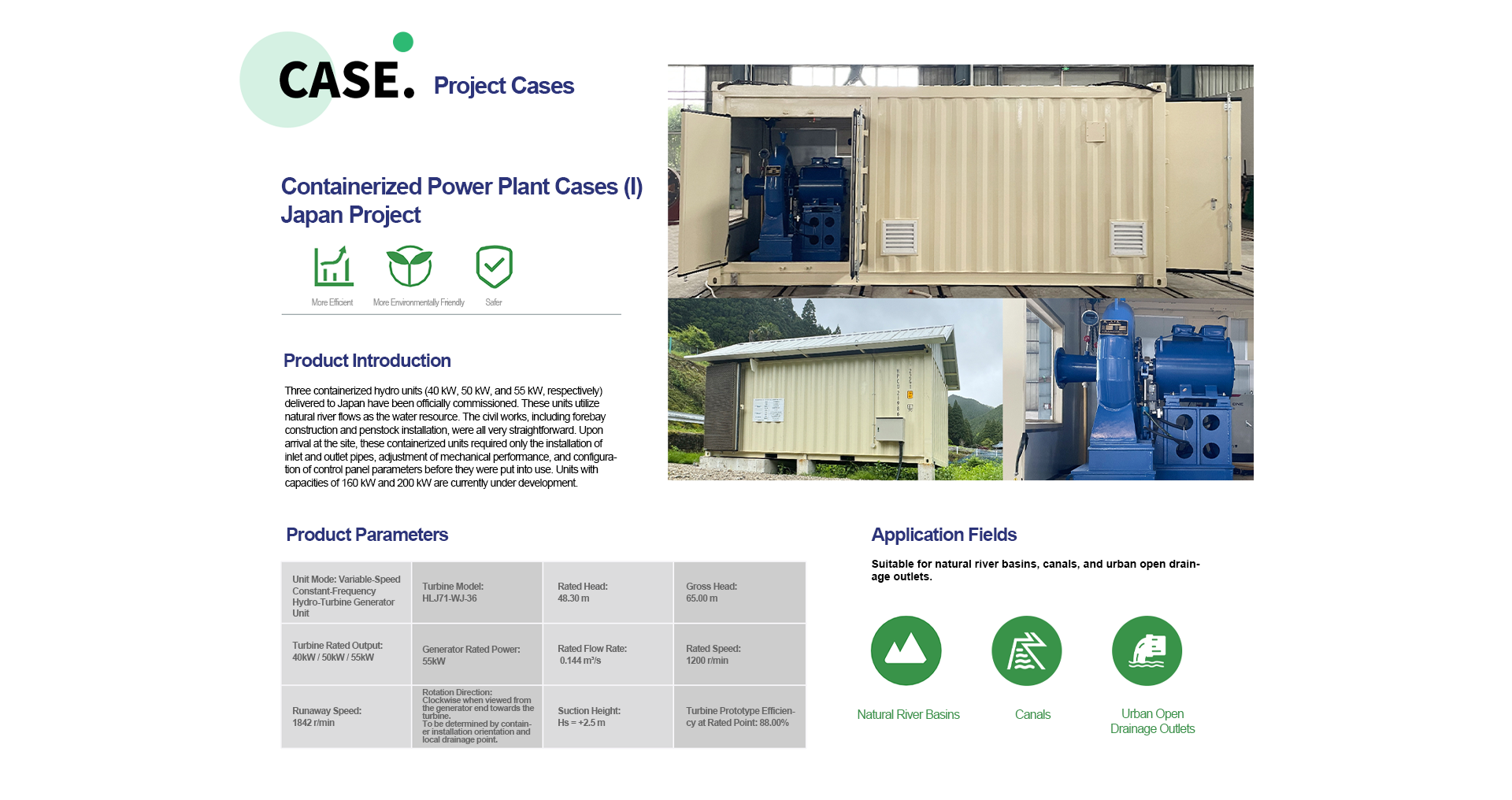

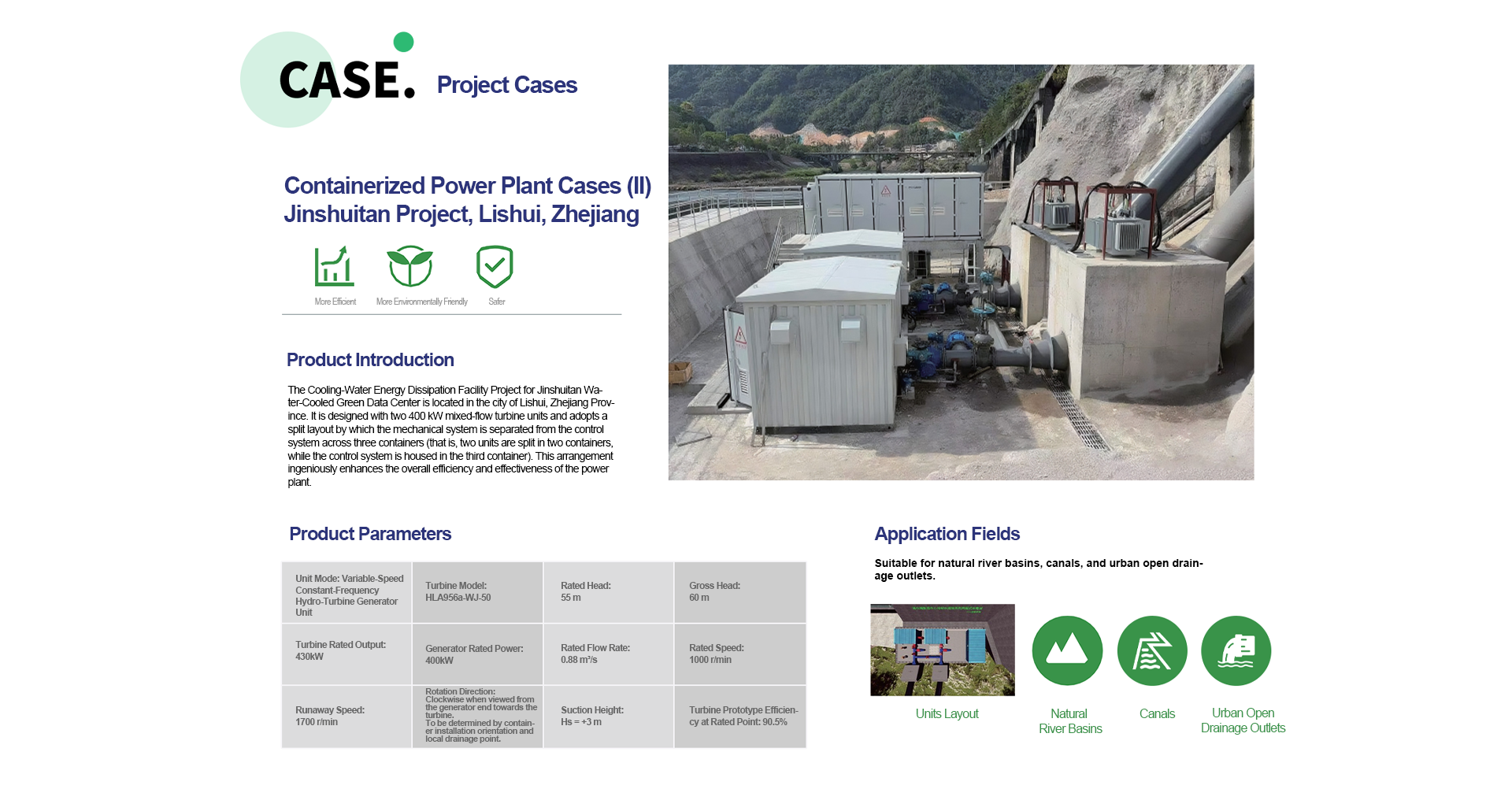

  1. Containerized Power Plant

    Two Configurations

    1.Vertical mixed-flow turbine generator unit

    2.Containerized power plant with inclined-jet turbine generator units, with individual unit capacities ranging from 40KW to 800KW

  2. Low-Head In-Line Hydro Turbine Generator Units

    Suizhou Project: 35 kW Unit, installed at the discharge pipe outlet of a wastewater treatment plant, featuring fixed guide vanes, and having a maximum capacity scalable up to 1,500 kW.

  3. Medium-Head In-Line Hydro Turbine Generator Units

    Xinchang Project: 300kW Unit, independently developed, featuring adjustable guide vanes

  4. Low-Head Hydropower Plants

    208KW Uzbekistan Client-Invested Power Plant (for Station #6): 4 units;170KW Uzbekistan Client-Invested Power Plant (for Station #7): 4 units, in production;Suitable for use at wastewater treatment plants, industrial facilities, and open-channel natural waterways with heads of 1–8 meters; single-unit capacity ranges from 20 kW to 300 kW.

  5. Vertical Mixed-Flow Turbine Generator Units

    Linhai Niutoushan Project: 320 kW ecological flow power generation unit (completed), designed with black-start capability, energy storage, among others.
